Server anfrage

Gerne beraten wir Sie bei einem persönlichem Beratungsgespräch oder telefonisch zu ihrem Vorhaben.

SSG-6029P-E1CR12L

  •   - Corporate Database
  •   - Database Processing & Storage
  •   - Enterprise Server
  •   - HPC, Data Center
  •   - iSCSI SAN
Intel
2 HE
2 CPUs
16 DIMMs
12 Drives
2 x 10 GbE
Red. PSU
NVMe (optional)
SAS (native)
Key Features:
  • Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
    (slot 2 & 3 occupied by controller
    and JBOD expansion port)

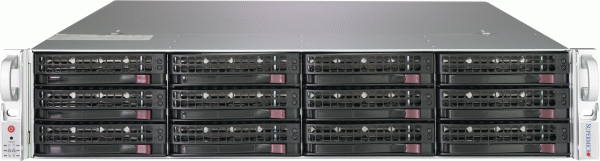

  • 12 Hot-swap 3.5" SAS3/SATA3 drive
    bays including 4 optional NVMe
    drives; 2 hot-swap 2.5" SATA3
    drive bays (rear), 2 M.2 NVMe,
    Expander based backplane
  • Broadcom 3008 SAS3 AOC
  • 2x 10GBase-T LAN ports with
    Intel X722 + PHY Intel X557
  • Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
  • 3 Hot-swap 8cm redundant PWM fans
  • 1200W Redundant Power Supplies
    Titanium Level (96%)
