AS-2123BT-HNR

  • Compute Intensive Application
  • HPC, Data Center, Enterprise
  • Server
  • Hyperscale / Hyperconverged
AMD
2 HE
2 CPUs
16 DIMMs
6 Drives
Red. PSU
NVMe (native)
Key Features:

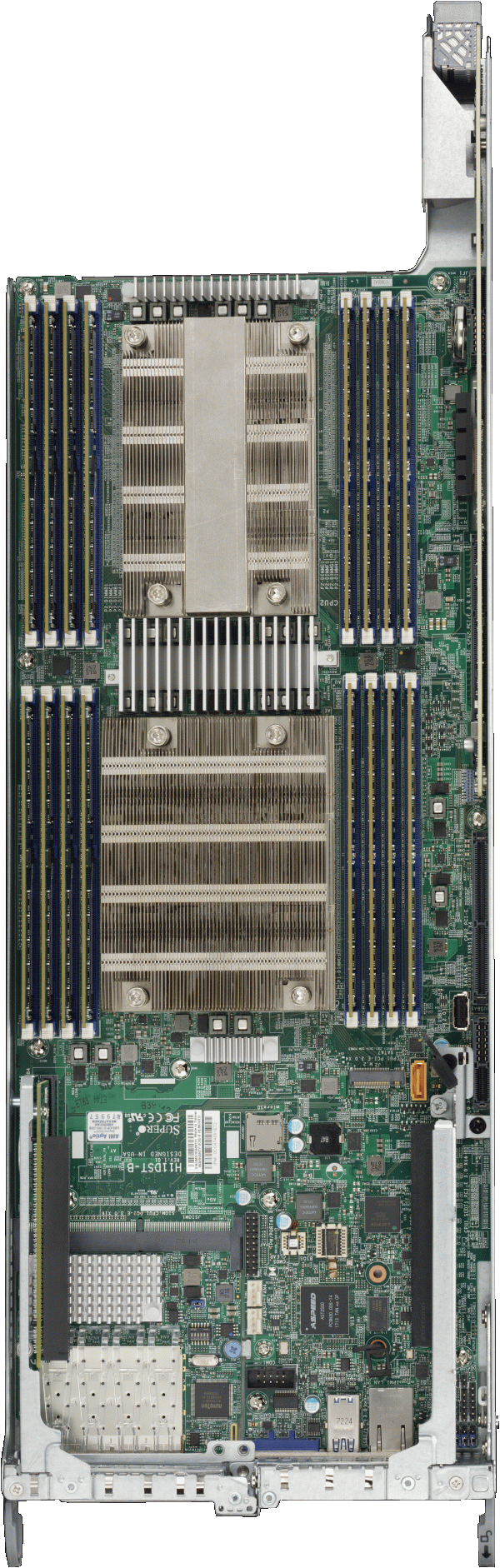

  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
  • 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors)
    4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
  • 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking)
    Note: must bundle with Network card
  • Integrated IPMI 2.0 + KVM with dedicated LAN
    • Software Out of Band License
     key (SFT-OOB-LIC) included
     for OOB BIOS management
  • 6 Hot-swap 2.5" NVMe drive bays
    M.2 Interface: 1 SATA/PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-key
  • Video via Aspeed AST2500 BMC
  • 2600W Redundant Power Supplies
    Titanium Level (96%)
    (Full redundancy based on configuration and application load)
