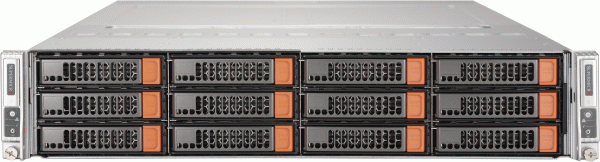

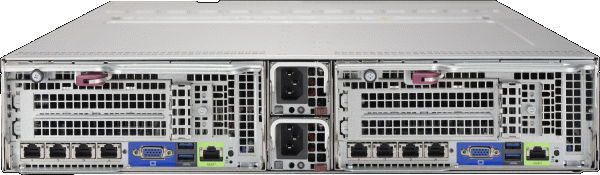

SYS-6029BT-DNC0R

  •   - Compute Intensive Application
  •   - HPC, Data Center, Enterprise
  •     Server
  •   - Hyperscale / Hyperconverged
Intel
2 HE
2 CPUs
24 DIMMs
6 Drives
Red. PSU
NVMe (native)
SAS (native)
Key Features:

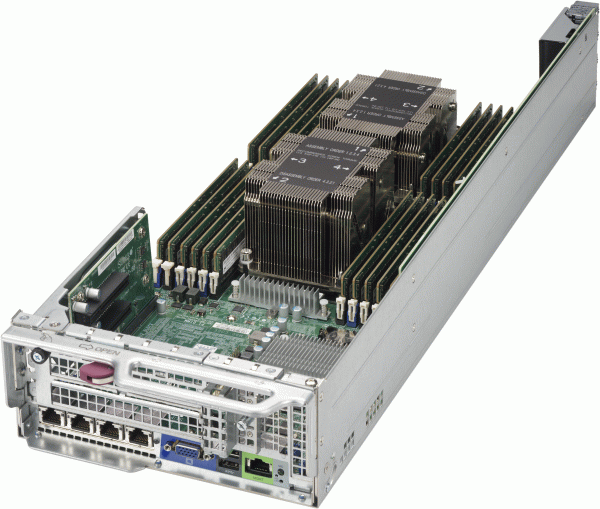

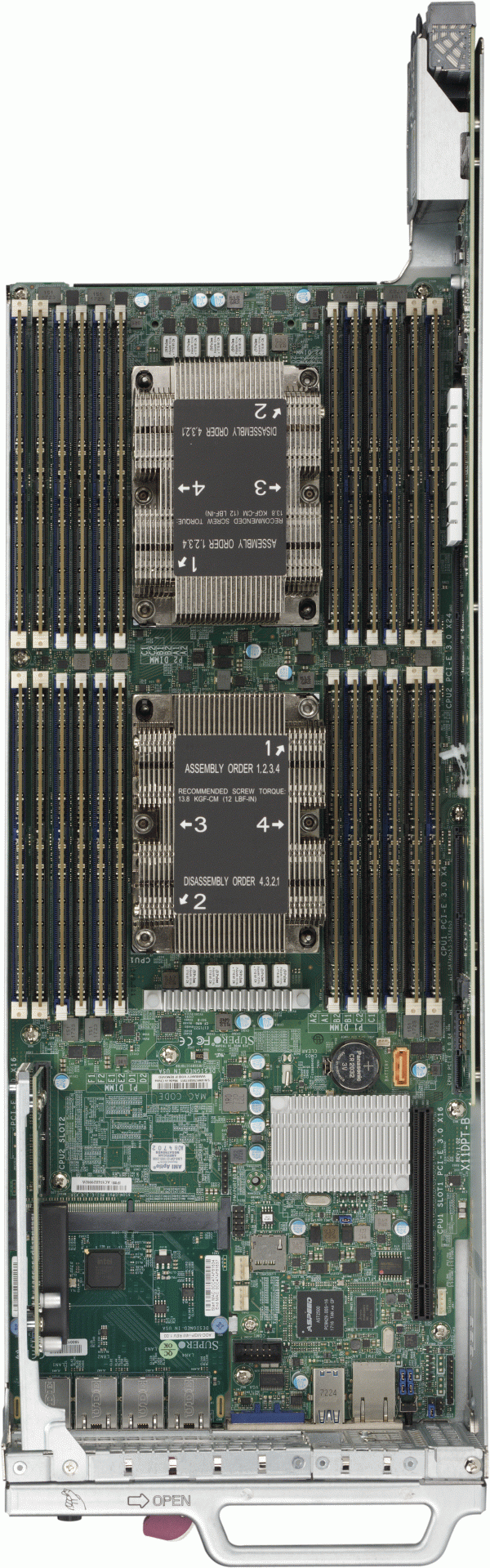

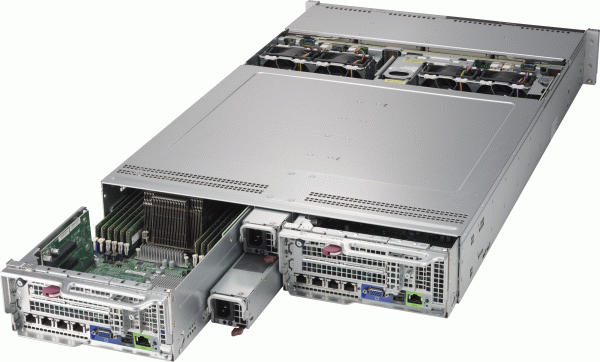

  • Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz
  • 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16,
    1 SIOM card support (flexible networking)
    Note: must bundle with Network card
  • 6 SAS3 or 3 NVMe + 3 SAS3
    Hot-swap 3.5" drive bays,
    2 internal M.2 NVMe/SATA slots
  • SAS3 support via Broadcom 3008;
    IT mode
  • IPMI 2.0 + KVM with dedicated LAN
  • Video via Aspeed AST2500 BMC
  • 4 Heavy duty 8cm PWM fans with
    air shroud
  • 2200W Redundant Power Supplies
    Titanium Level (96%)
